Note

All the code snippets below are meant to be used in the context of the Turorial notebook.

High reprojection error

Reprojection error is the difference between observed and projected points on the calibration object, and can be checked using multicam_calibration.viz.plot_residuals(). High median error (e.g. > 1) may indicate that calibration has failed. The following factors can contribute to high reprojection error.

  1. Insufficient number/diversity of overlapping detections.

    To correctly calculate the camera extrinsics, there must be a sufficient number and variety of shared detections of the calibration object. Based on the number of pairwise overlaps between each pair of cameras (which can be checked using multicam_calibration.detection.summarize_detections()), a maximum spanning tree (MST) is constructed relating each camera to the root the camera (see XXX). If any edge of the MST has insufficient detections, the calibration will fail. To check the number and temporal distributon of shared detections across each camera-pair in the MST, run:

    mcc.plot_shared_detections(all_calib_uvs, spanning_tree);

    Here is an example of the output for a successful calibration:

    _images/successful_shared_detections.jpg

    A failure mode would be if one of the rows contained very few detections, or if all the detections were concentrated at a single moment in time (and thus dis not cover a variety of angles for the calibration object). To troubleshoot too few overlapping detections, see Poor detection of calibration object below.

  2. Large number of detection errors.

    Assuming initial calibration converges to roughly the correct solution, detection errors will lead to visible outliers in the output of multicam_calibration.viz.plot_residuals(), as seen for “camera 4” below. To troubleshoot erroneous detections, see Detection errors below.

    _images/outliers_example.png

Detection errors

If a camera appears to have a high number of outlier frames (e.g. as revealed by multicam_calibration.viz.plot_residuals(); see above), the first step is to identify the frames where might be occuring and visualize the detections. The following code snippet plots the mean reprojection error over time for a single camera:

camera_ix = 1 # camera we wish to diagnose
error = np.linalg.norm((reprojections - all_calib_uvs)[camera_ix], axis=2).mean(1)
plt.plot(error)
plt.xlabel('Frames')
plt.ylabel('Mean error (pixels)')
plt.gcf().set_size_inches((6,2))
_images/plot_error_over_time_example.png

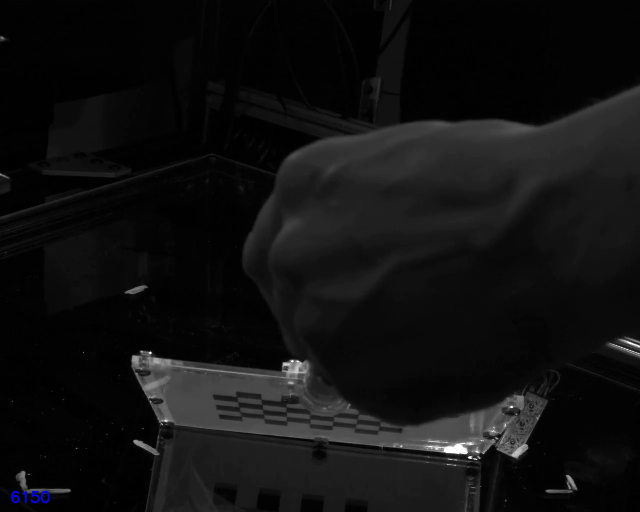

In this example, we can see several spikes in the error, including around frame 1500. The code below saves a video clip with the detections overlaid, which reveals that the problem is reflections.

mcc.overlay_detections('path/to/video.mp4', frame_range=(1400, 1700))
_images/detection_errors_example.gif

Poor detection of calibration object

[STUB] Object must be fully within the image to be detected. Should ideally be detected in >50% of frames where it is visible. Possible reasons for non-detection (assuming object is a chessboard pattern) are listed below.

  • Wrong board_shape parameter (see XXX for determining this parameter)

  • Occlusions and/or reflections

  • Poor focus or motion blur
